ปั๊มจุ่มถ่ายเท ระบบใบพัดผลักดัน |
|
คุณสมบัติพิเศษปั๊มจุ่ม BH BL *
ออกแบบใบพัดน้ำ(คล้ายใบพัดเรือ) Axial & Mix Flow ซึ่งมีคุณสมบัติ ประโยชน์การใช้งานปั๊มจุ่ม
BH BL
|
| Model | Outlet | Output | Output | Voltage | Revolution | Max. Head | Max. Capacity | Dimension | Weight |
| รุ่น | ขนาดท่อ | กำลัง | กำลัง | ไฟ | ความเร็วรอบ | ส่งสูงสุด | ปริมาณน้ำสูงสุด | ขนาด | น้ำหนัก |
| (Inch) | (HP) | (KW) | (Volt) | (RPM) | (M) | (L/Min.) | (mm) | (kg) | |
| BH-322 | 3" | 3 | 2.2 | 380V | 1400 | 6 | 600 | Ø245x530 | 45 |

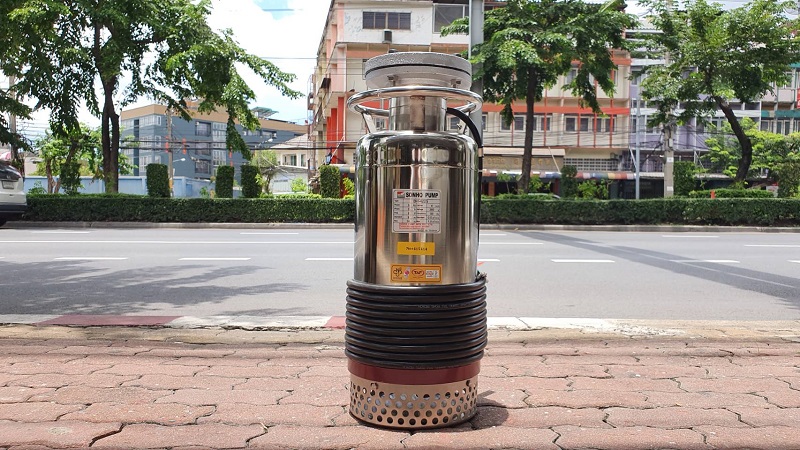

| BH-422 | 4" | 3 | 2.2 | 6 | 600 | Ø245x530 | 45 | ||

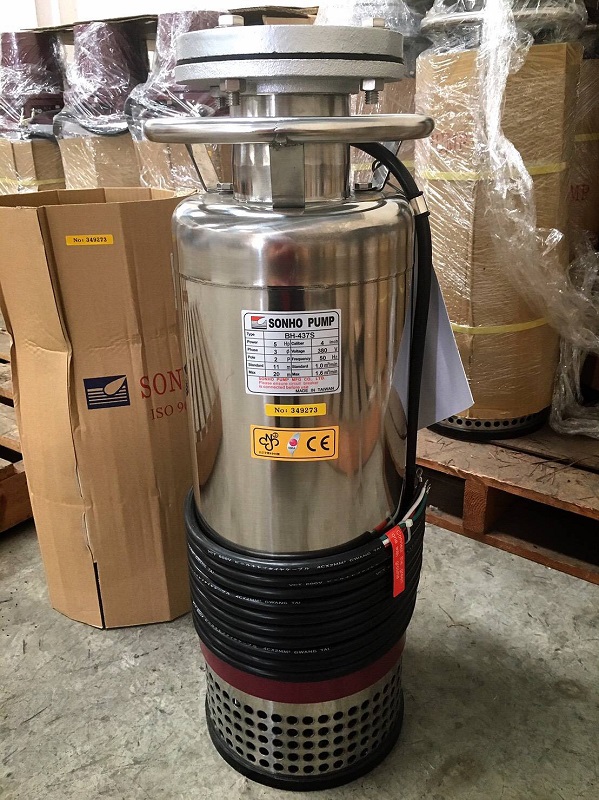

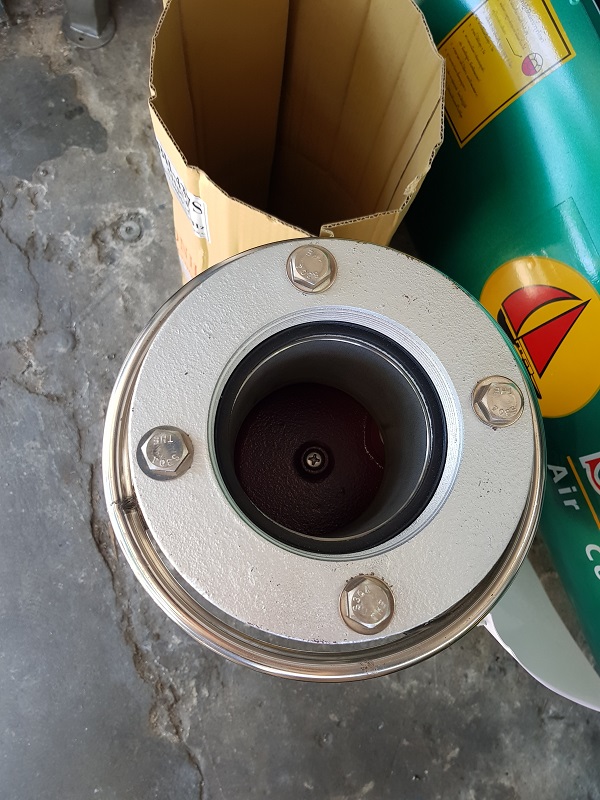

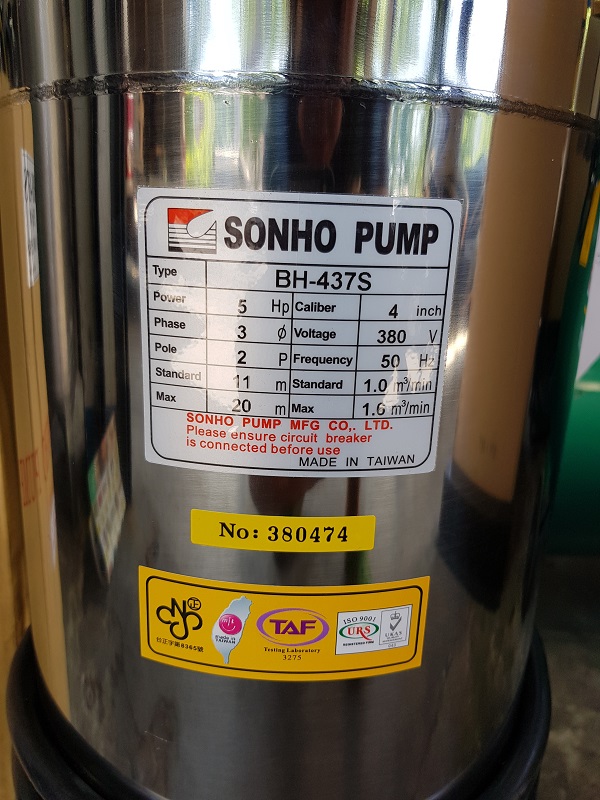

| BH-437A | 4" | 5 | 3.7 | 7 | 1000 | Ø270x680 | 70 | ||

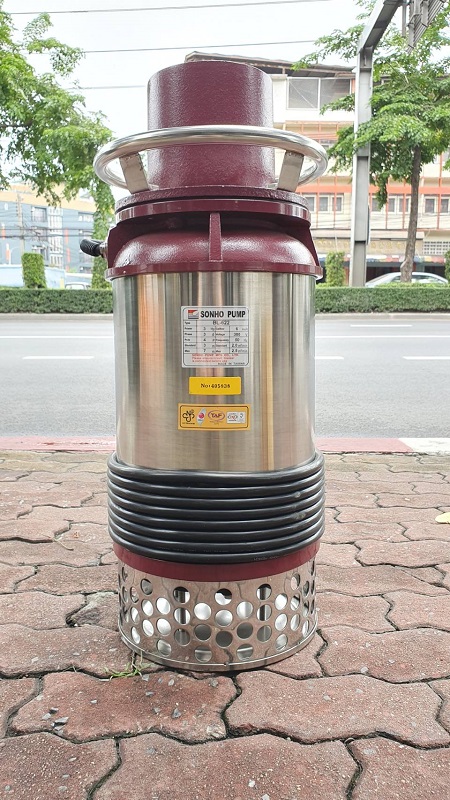

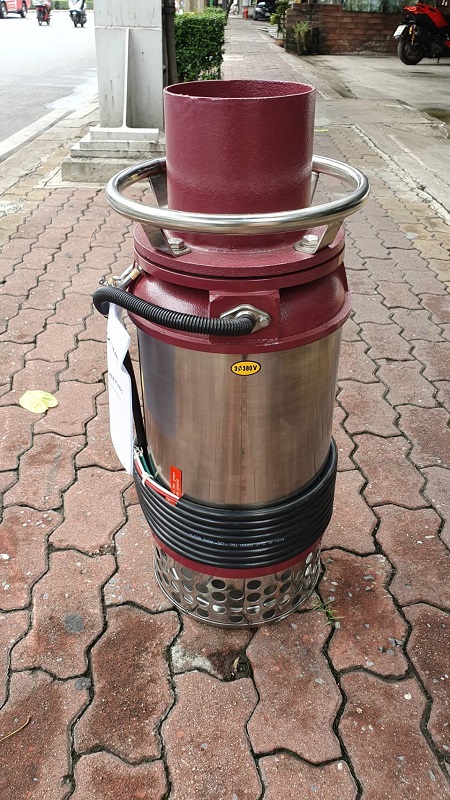

| BL-622 | 6" | 3 | 2.2 | 3 | 2000 | Ø290x740 | 70 | ||
| BH-637A | 6" | 5 | 3.7 | 5 | 2000 | Ø290x815 | 75 | ||
| BL-855 | 8" | 7.5 | 5.5 | 4 | 3500 | Ø340x920 | 130 | ||
| BL-1075 | 10" | 10 | 7.5 | 4 | 6000 | Ø370x1000 | 180 | ||
| BL-1212 | 12" | 16 | 12 | 4 | 8000 | Ø430x1080 | 225 | ||
| BL-1215 | 12" | 20 | 15 | 4 | 9000 | Ø430x1100 | 236 |

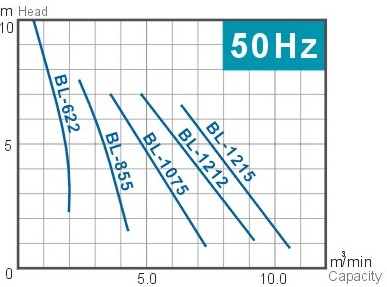

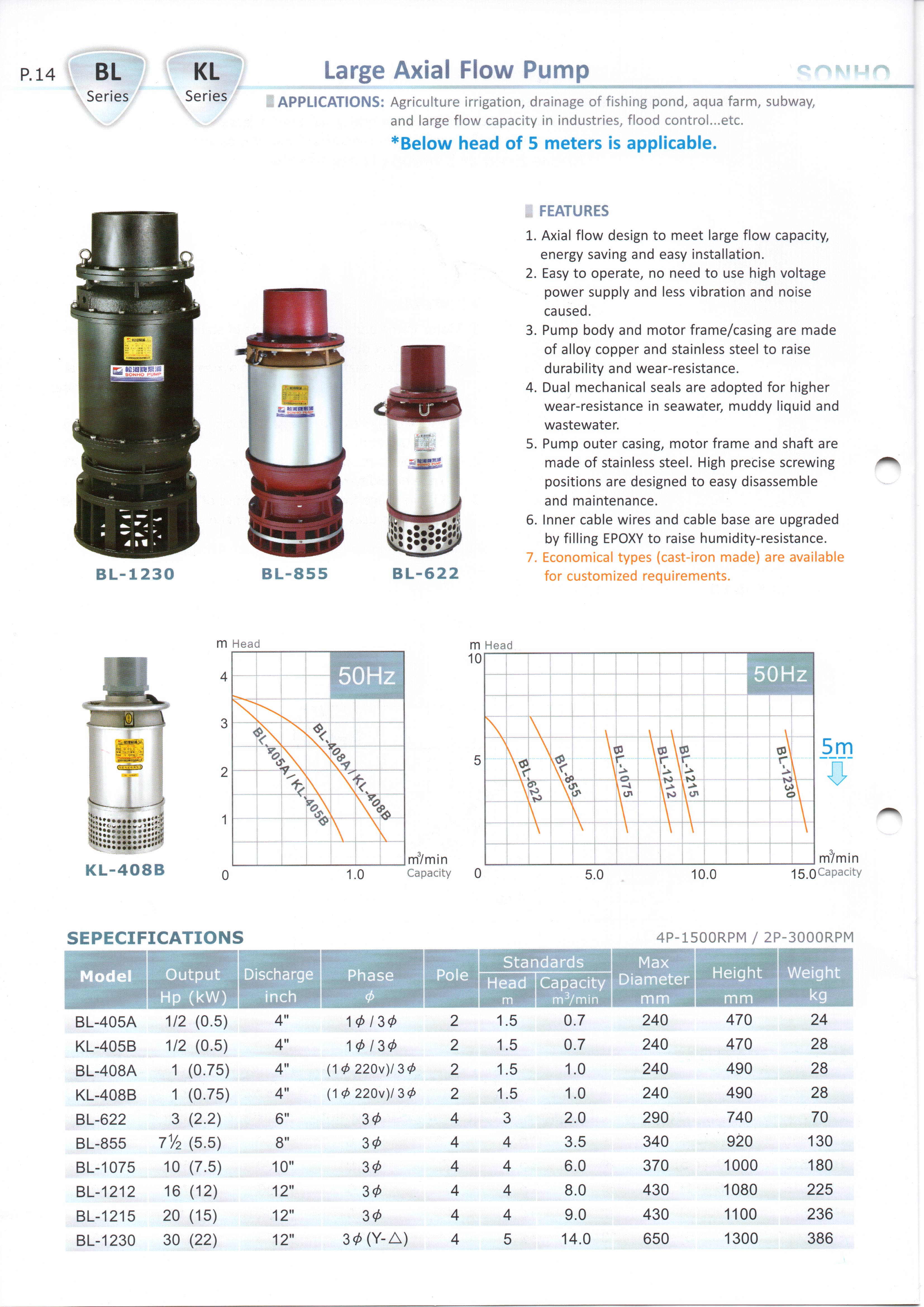

BL SERIES
|
Components |
Meterial Specifications |
|
DISCHARGE OUTLET |
FC-20 |
|
CABLE |
VCT, 10m |
|
OUTER UPPER COVER |
Copper Alloy |
|
INNER UPPER COVER |
Copper Alloy |
|
BEARING SHELF |
FC-20 |
|
MOTOR FRAME |
Stainless Steel 304 |
|
OUTER COVER |
Stainless Steel 304 |
|
BEARING BRACKET |
Copper Alloy |
|
MECHANICAL SEAL LID |
Copper Alloy |
|
OIL SEAL SLEEVE |
Stainless Steel 304 |
|
IMPELLER |
Copper Alloy |
|
BASE STAND |
FC-20 |
|
SHAFT |
Stainless Steel 304 |
|
PUMP HOUSING |
FC-20 |
|
MECHANICAL SEAL |
Ceramic-Carbon |
|
OIL SEAL |
NBR |
|
CASING COVER |
FC-20 |
|
STRAINER |
Stainless Steel 304 |
BH SERIES
|
Components |
Material specifications |
| CABLE |
VCT, 8m |
| HANDLE |
Stainless Steel 304 |
| UPPER COVER |
FC-20 |
| BEARING HOUSING |
FC-20 |
| OUTER COVER |
Stainless Steel 304 |
| MOTOR FRAME |
Stainless Steel 304 |
| STRAINER |
Stainless Steel 304 |
| SHAFT |
Stainless Steel 304 |
| PUMP HOUSING |
FC-20 |
| IMPELLER |
Copper Alloy |

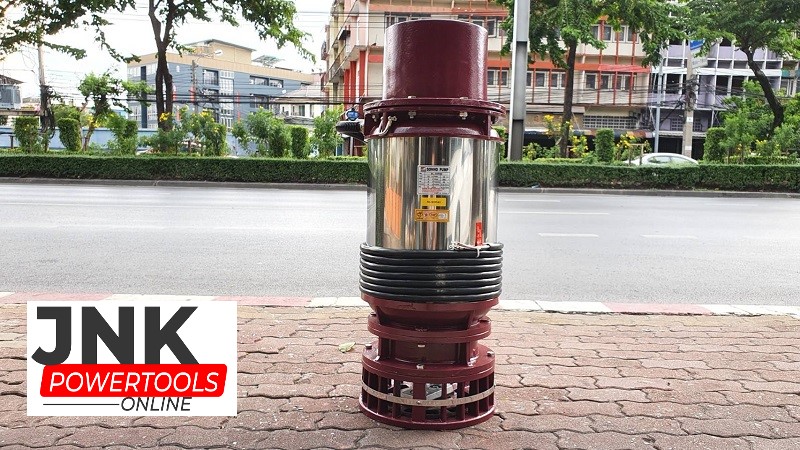

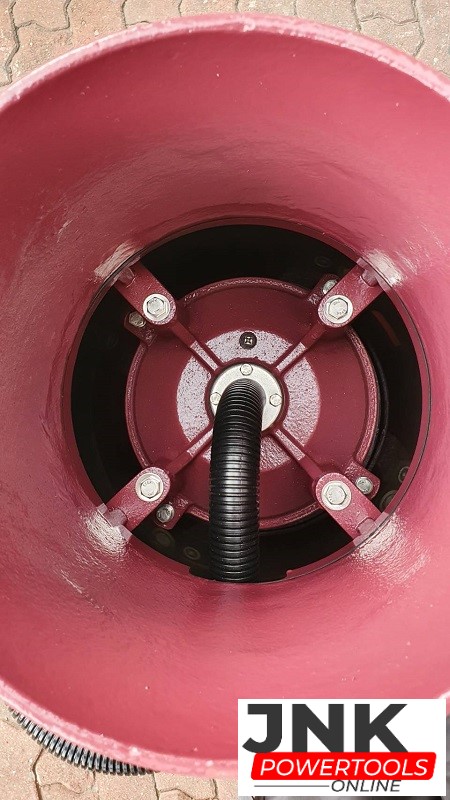

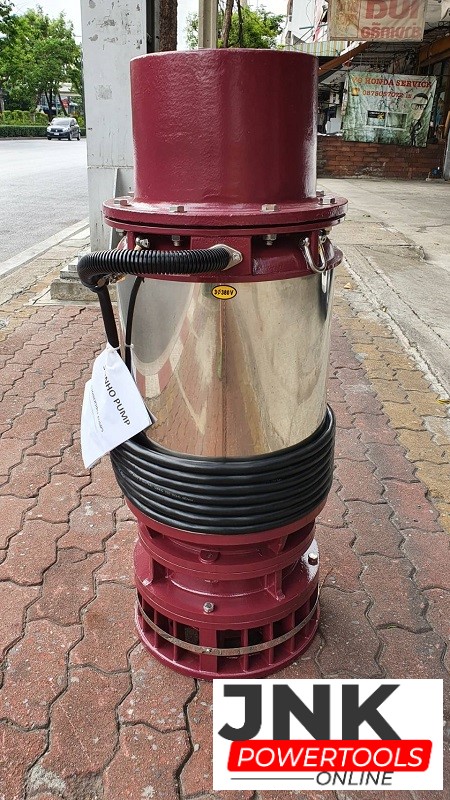

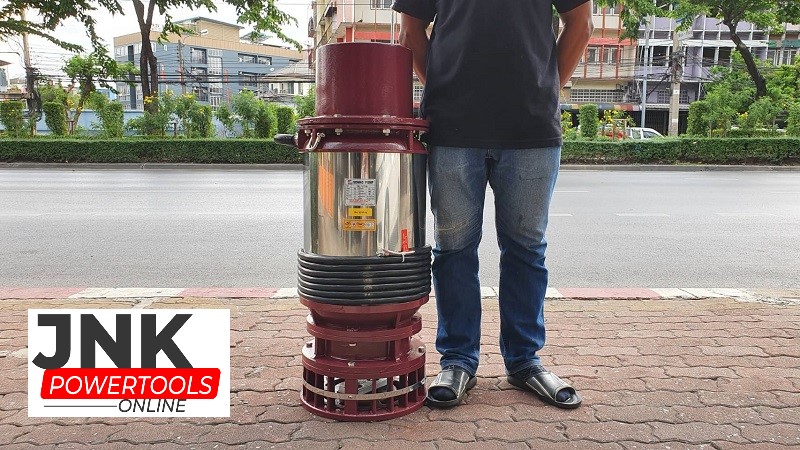

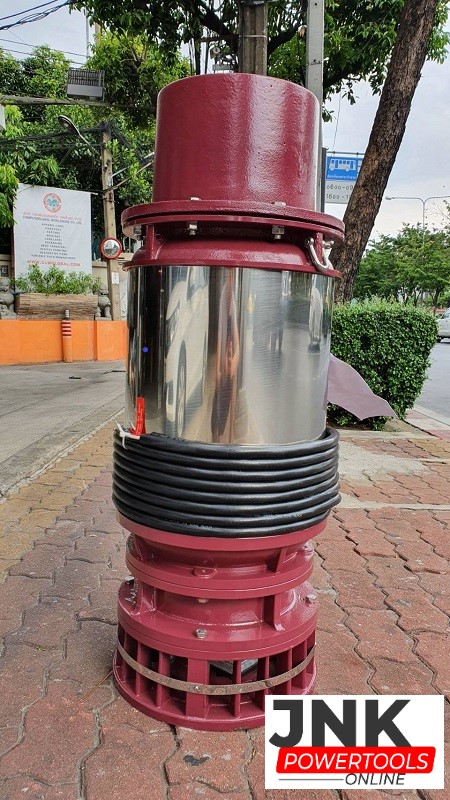

BL-1075B
